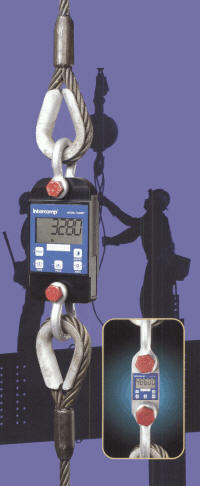

TL6000 tension link scale
(shown with optional shackles)
click here for a
complete brochure
The state of the art 14 bit A/D microprocessor
delivers more features and functions to ensure the TL6000 is a versatile yet
easy to use tool. Everything is powered by two (9V) alkaline batteries that
provide more then 500 hours of continuous use to ensure you are virtually never
without power. No other tension link offers these all encompassing features in
one complete unit.
Compact Design
Light weight and compact
the TL6000 answers most overhead weighing requirement but now provides the
ultimate in portability. Perfect for weighing in multiple locations. It allows
easy installation into almost any line and reduces headroom Ioss due to the low
overall height. The TL600 is your mobile weighing and line tension device for
use anywhere and anytime.
Unparallel Accuracy
Performance
characteristics wouldn't mean a thing if not for the TL6000's unparalleled
accuracy AND repeatability. Temperature compensation and state of the art strain
gauge sensors provide an accuracy of +/-0.1% of applied load. Unique
microprocessor technology requires only three point Linearization for simple and
straight forward keypad calibration. All standards are traceable to the National
Institute of Standards and Technologies. Formal calibration certificates are
standard with each unit.
Durable Construction
The TL6000 is constructed
from high strength aluminum, carbon or stainless steel. All models are sealed
for maximum protection against repeated strain, corrosion and deterioration,
thereby granting a longer life. Shock mounted and capable of withstanding loads
up to 200% of rated capacity and maintains a safety factor of 5:1. All load
bearing components capable of meeting U.S. Navy hardness ratings. Uses Crosby
top and bottom shackles. NEMA 4X / IP 65 environmentally sealed for all weather
performance.
| Part Number |
Capacity |
Weight |
Price |
| TL6000-500 |
500 x 0.5 lb |
7 lb |
$1140 |
| TL6000-1,000 |
1,000 x 1 lb |
7 lb |
$1140 |
| TL6000-2,000 |
2,000 x 2 lb |
7 lb |
$1140 |
| TL6000-5,000 |
5,000 x 5 lb |
7 lb |
$1282 |
| TL6000-10,000 |
10,000 x 10 lb |
18 lb |
$1496 |
| TL6000-25,000 |
25,000 x 20 lb |
35 lb |
$1824 |
| TL6000-50,000 |
50,000 x 50 lb |
55 lb |
$2028 |
| TL6000-100,000 |
100,000 x 100 lb |
75 lb |
$3002 |
| TL6000-160,000 |
160,000 x
200 lb |
85 lb |
$7742 |
| TL6000-220,000 |
220,000 x 200 lb |
100 lb |
$8545 |
| TL6000-350,000 |
350,000 x 500 lb |
175 lb |
$10,445 |
| TL6000-400,000 |
400,000 x 500 lb |
235 lb |
$12,345 |
| TL6000-500,000 |
500,000 x 500 lb |
937 lb |
$15,195 |
| Optional
Shackles |
| 150100 Top & Bottom |
5,000 lb |
3 lb |
$144 |
| 150100 Top & Bottom |
10,000 lb |
6 lb |
$192 |
| 150100 Top & Bottom |
25,000 lb |
39 lb |
$684 |
| 150100 Top & Bottom |
50,000 lb |
63 lb |
$1044 |
| 150100 Top & Bottom |
100,000 lb |
104 lb |
$2690 |
| Remote Indicators |
|
|
|
| TL-1ND1 |
single indicator
with 25 ft cable, no indicator at scale |
|
$695 adder |
| TL-IND2 |
two indicators,
one at scale and one remote with 25 ft cable |
|
$995 adder |
| TL-RF2 |
two indicators,
one at scale and one RF wireless indicator |
|
$1495 adder |
| Additional Options |
|
|
|
| Set point relay |
|
|
$495 |
| 24V AC power |
|
|
$345 |
| 120V AC power |
|
|
$345 |
| 240V AC power |
|
|
$365 |
| Analog output |
|
|
$195 |
| Audible alarm |
|
|
$495 |
|
